AUN 250

Fold-up design lets you close the tailgate with the ramp inside.

Most motorcycle ramps for pickup trucks run into the same problem on a short bed: either the ramp is too short for a safe loading angle, or it is so long that it sticks out over the tailgate and you can't close it. The AUN 250 solves both. It gives you a full-length ramp for the high loading height of a pickup, and its tilt ramp folds up, so you can close the tailgate with the ramp still inside the truck.

The AUN 250 is the most advanced model in the Neo-Dyne AUN range and the only one that lets you close the tailgate without removing the ramp. The base ramp can be cut to the exact length of your cargo bed, down to a minimum of 1300 mm (51"), so it fits short-bed and crew-cab pickups.

Load a heavy motorcycle on your own

Pushing a heavy bike up a steep aluminium ramp is how motorcycles get dropped and backs get hurt. With a Neo-Dyne ramp you never push the bike uphill. You roll the front wheel into the wheel chock while the ramp is tilted down to the ground, strap the bike in, and let the ramp do the lifting:

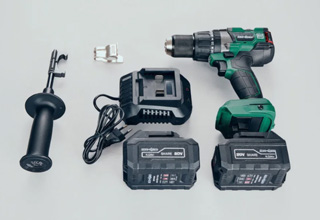

  • A standard 18V cordless drill with 120 Nm of torque in the lowest gear drives a self-locking, fin-cooled worm drive that pulls the motorcycle up.
  • The ramp tilts to horizontal while it is still outside the vehicle, so the bike is level before it rolls in. This is Neo-Dyne's PowerTilt feature.
  • The worm drive is self-locking: when you stop, the load stays exactly where it is.

The ramp lifts motorcycles of up to 550 kg (1200 lbs), which covers touring bikes, baggers and heavy cruisers. There is no wiring and no battery to install in your vehicle, so the ramp never drains your vehicle battery. If your drill battery runs flat, you can still operate the ramp with a ratchet or crank, only more slowly. Do not use an impact driver, as it will damage the worm drive.

Unload, fold, close the tailgate

Unloading is the same process in reverse: the ramp tilts down outside the truck and lowers the motorcycle to the ground under full control. Once the bike is off, you fold the ramp and close the tailgate in less than a minute. Your truck is ready for everyday use while the ramp stays on board for the next ride.

Loading into a short-bed pickup? Our page motorcycle ramp for short-bed trucks compares the AUN 250 and AUN 150 side by side.

Specifications

  • Payload: up to 1200 lbs / 550 kg
  • Total length: 8.2 ft / 2500 mm; the base ramp can be cut down to 1300 mm
  • Loading height: up to 35" / 900 mm, or 51" / 1300 mm with the AC-001 extender
  • Maximum wheelbase: 79" / 2000 mm
  • Rear tires up to 300 mm wide
  • Ramp weight: 243 lbs / 110 kg

Built for daily, professional use

The beams are custom-designed profiles in 6061-T6 aerospace-grade aluminium, as strong as mild steel at a third of the weight. All steel parts are laser cut, welded, zinc plated and then powder coated for corrosion resistance. The computer-designed wheel chock adjusts quickly to different tire widths and diameters and takes rear tires up to 300 mm wide. The tie-down T-bar secures the motorcycle without putting extra load on the front forks.

Professional haulers rely on it every day. Ray Jackson of South of 80 Ray's Chopper Shop loads Harley-Davidson baggers six times a day on average: "The Neo-Dyne Loaders handles the 900 lb bikes with ease!"

Installation without drilling

You can bolt the ramp to strongpoints in your vehicle (the ramp joiners can be moved to line up with them), but you don't have to drill at all. With the AC-012 boltless attachment kit and standard ratchet straps hooked to the tie-downs of your cargo bed, you can install or remove the ramp in a matter of minutes. In most countries a strapped-down ramp counts as payload rather than as a modification to the vehicle, and you can easily move it from one vehicle to another.

The AUN 250 is also compatible with the AC-001 tilt frame extender for higher trucks.

Frequently asked questions

Will the AUN 250 fit my short-bed pickup?

The base ramp is cut to the length of your cargo bed, with a minimum of 1300 mm, so it fits most short-bed and crew-cab pickups. For an exact recommendation for your truck and motorcycle, use the Configure yours tool or contact our team.

AUN 250 or AUN 150?

Both are made for short beds. Choose the AUN 250 if you want to close the tailgate with the ramp inside the truck. Prefer a solid ramp? Then choose the AUN 150: for motorcycles over 350 kg (770 lbs) its base ramp is cut to the length of the bed with the tailgate down, for safety.

Do I need to install a battery or wiring?

No. The ramp is operated with a standard 18V cordless drill, so there is no wiring, no extra battery and no hydraulic pump to install in your vehicle.

Which motorcycles can I load?

Any motorcycle up to 550 kg / 1200 lbs with a wheelbase up to 79" / 2000 mm and a rear tire up to 300 mm wide, from sport bikes to heavy baggers and touring bikes.

Where can I buy the AUN 250?

Neo-Dyne ramps are sold through authorized dealers worldwide. Find the dealer for your region on our dealers page, or request a quote and we will put you in touch.

AUN 250

Neo-Dyne AUN 250 folding powered motorcycle ramp
USD
3650
EUR
2995
excluding sales tax and freight
EUR
including VAT, excluding freight
Where to buy
AUN 250 tilt ramp being folded in a pickup truck
AUN 250 folded ramp inside the pickup bed
Pickup tailgate closed with the AUN 250 ramp folded inside
No items found.

Fold/Unfold

In less than a minute, unload your vehicle, fold the ramp and close the tailgate.

No items found.

Tech Specs

Total Length
8.2 ft / 2500 mm
Weight
243 lbs / 110 kg
Max Load Height *
35" / 900 mm
Max load height with extender *
51" / 1300 mm
max payload
1200 lbs / 550 kg
max wheelbase
79" / 2000 mm

* with a longer AC001 extender, it is possible to increase the loading height to 59" / 1500 mm

Download manual & specs
