AUN 110

At 6.9ft / 2.1m this is our smallest ramp which is a favorite for clients looking to install it in a van or sideways in a truck or utitlity vehicle.

At 6.9 ft / 2.1 m, the AUN 110 is the most compact powered motorcycle ramp in the Neo-Dyne range. It is made for vehicles where space is tight: vans, RVs, trailers, and pickups or utility vehicles where the ramp is mounted sideways across the cargo bed. It is the go-to choice for street bikes and more compact motorcycles of around 2 m (6.5 ft) total length, and it is especially effective in low-roof vans where vertical clearance is limited.

What makes it work in such small spaces is the PowerTilt feature: the ramp tilts the motorcycle to horizontal while it is still outside the vehicle. The bike rolls in level, so you can load into a standard van or the loading bay of an RV.

Load a heavy motorcycle on your own

Pushing a heavy bike up a steep aluminium ramp is how motorcycles get dropped and backs get hurt. With a Neo-Dyne ramp you never push the bike uphill. You roll the front wheel into the wheel chock while the ramp is tilted down to the ground, strap the bike in, and let the ramp do the lifting:

  • A standard 18V cordless drill with 120 Nm of torque in the lowest gear drives a self-locking, fin-cooled worm drive that pulls the motorcycle up.
  • The ramp tilts to horizontal while it is still outside the vehicle, so the bike is level before it rolls in. This is Neo-Dyne's PowerTilt feature.
  • The worm drive is self-locking: when you stop, the load stays exactly where it is.

The ramp lifts motorcycles of up to 550 kg (1200 lbs). There is no wiring and no battery to install in your vehicle, so the ramp never drains your vehicle battery. If your drill battery runs flat, you can still operate the ramp with a ratchet or crank, only more slowly. Do not use an impact driver, as it will damage the worm drive.

Vans, RVs and sideways installs

Many owners mount the AUN 110 sideways in an RV or across a trailer bed or pickup bed, and it is very popular in vans. For motorcycles with a long overhang, the AC-003 extender attaches to the main frame and lets you slide the bike further into the van so you can close the rear doors. The AC-004 tailgate adapter is also compatible with the AUN 110. Although it is the shortest ramp in the range, it can be fitted with an AC-001 extender to reach higher loading heights.

Specifications

  • Payload: up to 1200 lbs / 550 kg
  • Total length: 6.9 ft / 2100 mm
  • Loading height: up to 27" / 700 mm, or 43" / 1100 mm with an extender
  • Maximum wheelbase: 65" / 1650 mm
  • Rear tires up to 300 mm wide
  • Ramp weight: 187 lbs / 85 kg

Built for daily, professional use

The beams are custom-designed profiles in 6061-T6 aerospace-grade aluminium, as strong as mild steel at a third of the weight. All steel parts are laser cut, welded, zinc plated and then powder coated for corrosion resistance. The computer-designed wheel chock adjusts quickly to different tire widths and diameters and takes rear tires up to 300 mm wide. The tie-down T-bar secures the motorcycle without putting extra load on the front forks.

Professional haulers rely on it every day. Ray Jackson of South of 80 Ray's Chopper Shop loads Harley-Davidson baggers six times a day on average: "The Neo-Dyne Loaders handles the 900 lb bikes with ease!"

Installation without drilling

You can bolt the ramp to strongpoints in your vehicle (the ramp joiners can be moved to line up with them), but you don't have to drill at all. With the AC-012 boltless attachment kit and standard ratchet straps hooked to the tie-downs of your cargo bed, you can install or remove the ramp in a matter of minutes. In most countries a strapped-down ramp counts as payload rather than as a modification to the vehicle, and you can easily move it from one vehicle to another.

Frequently asked questions

Is the AUN 110 the right ramp for my van?

If you have a compact or low-roof van and a motorcycle of around 2 m in length or less, the AUN 110 is usually the best fit. For full-size vans and longer touring bikes, the AUN 210 gives more runway. The Configure yours tool gives a recommendation for your exact vehicle and motorcycle.

Can I use the AUN 110 in an RV or on a trailer?

Yes. Many owners mount it sideways in the loading bay of an RV or across a trailer bed. Because the ramp tilts to horizontal outside the vehicle, it works where there is little room to manoeuvre.

Do I need to install a battery or wiring?

No. The ramp is operated with a standard 18V cordless drill, so there is no wiring, no extra battery and no hydraulic pump to install in your vehicle.

Which motorcycles can I load?

Motorcycles up to 550 kg / 1200 lbs with a wheelbase up to 65" / 1650 mm and a rear tire up to 300 mm wide. Street bikes and compact motorcycles are the best match.

Where can I buy the AUN 110?

Neo-Dyne ramps are sold through authorized dealers worldwide. Find the dealer for your region on our dealers page, or request a quote and we will put you in touch.

AUN 110

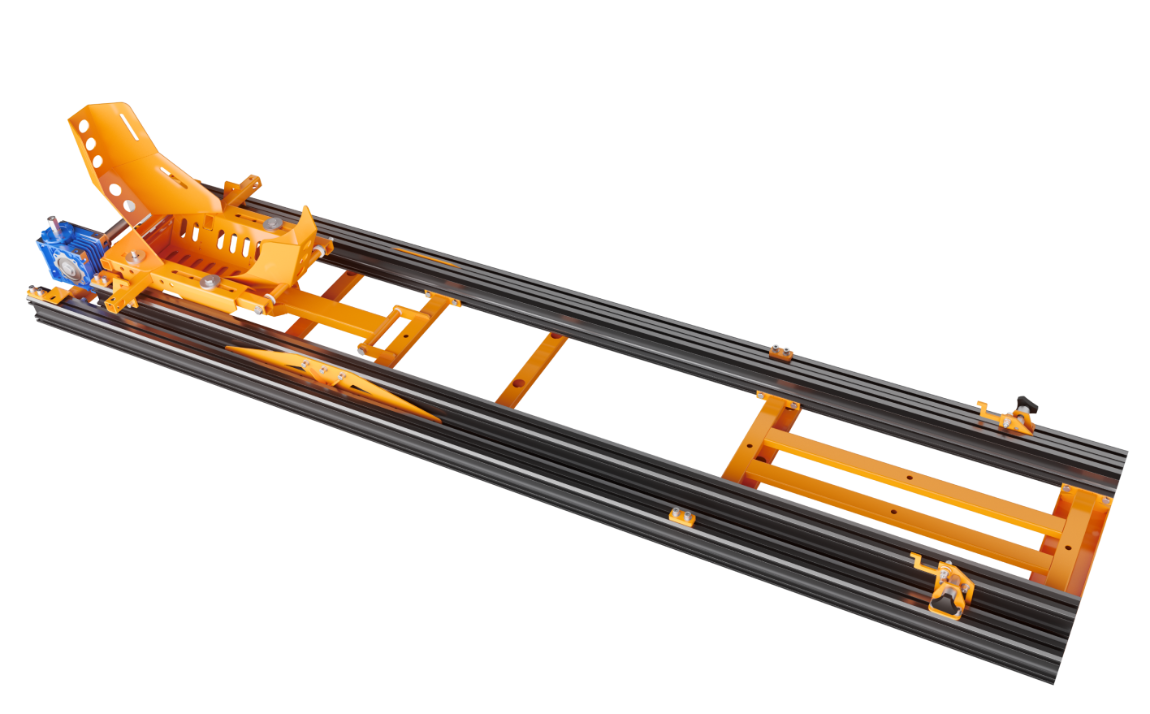

Neo-Dyne AUN 110 powered motorcycle ramp
USD
3250
EUR
2295
excluding sales tax and freight
EUR
including VAT, excluding freight
Where to buy
No items found.

No items found.

Tech Specs

Total Length
6.9 ft / 2100 mm
Weight
187 lbs / 85 kg
Max Load Height *
27" / 700 mm
Max load height with extender *
43" / 1100 mm
max payload
1200 lbs / 550 kg
max wheelbase
65" / 1650 mm

* with a longer AC001 extender, it is possible to increase the loading height to 59" / 1500 mm
